Basic structure and working principle of crawler excavator

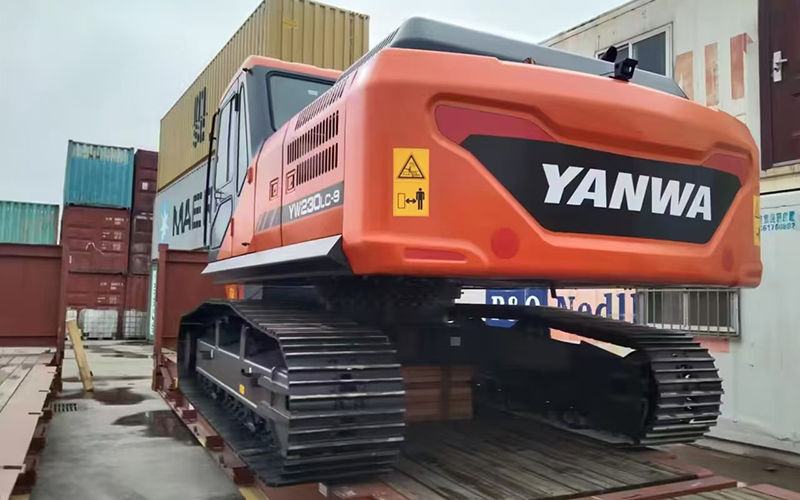

Crawler excavator is a heavy machinery equipment widely used in construction, mining, agriculture and other fields. Its basic structure includes a tracked chassis, a rotating platform, a boom, an arm, a bucket, a hydraulic system, and a cab. The tracked chassis provides stable support and mobility, suitable for various complex terrains. The rotary platform connects the chassis and upper structure, enabling 360 degree rotation and increasing operational flexibility.

The boom and boom are the main working components of an excavator, which can be driven by a hydraulic system to perform various actions such as excavation, lifting, and rotation. The bucket is the part that comes into direct contact with the material, and its shape and size can be replaced according to different work requirements. The hydraulic system is the core power source of excavators, which converts the mechanical energy of the engine into hydraulic energy through components such as hydraulic pumps, hydraulic cylinders, and hydraulic motors, thereby driving various working components.

The cab is the operator's workspace, equipped with various control devices and display instruments, providing a good view and comfortable operating environment. Modern tracked excavators are also equipped with advanced electronic control systems and automation functions, which improve the accuracy and efficiency of operations.

The working principle of tracked excavators mainly relies on hydraulic systems. The engine drives the hydraulic pump, delivering hydraulic oil to various hydraulic cylinders and motors. By controlling the flow and pressure of the hydraulic oil, various actions of the boom, arm, and bucket are achieved. The advantages of hydraulic systems lie in their high transmission efficiency, fast response speed, flexible operation, and ability to adapt to various complex working environments.

Overall, crawler excavators have become important equipment in modern construction machinery due to their powerful working ability and flexible operating performance. The continuous improvement and optimization of its basic structure and working principle have also provided a solid foundation for its wide application in various fields.
